Clean Room Wall Panel Manufacturer

The clean room wall panel is a prefabricated modular panel used to create walls and partitions in controlled environments such as pharmaceutical facilities, electronics factories, food processing plants and laboratories.

A typical cleanroom wall panel consists of metal facings, an internal core and a joint or connection system. Unlike conventional interior partitions, cleanroom wall systems are designed to create smooth, sealed and cleanable surfaces while allowing coordinated installation with cleanroom ceilings, doors, windows and equipment openings.

The main difference is the intended application and system design.

Standard sandwich panels are commonly used for industrial building walls and roofs where thermal insulation, weather resistance and structural performance are major requirements.

Cleanroom wall panels are designed for controlled indoor environments. Greater attention is normally given to surface smoothness, panel flatness, joint design, cleanability, sealing, openings and integration with cleanroom doors, windows and ceilings.

The appropriate product should therefore be selected according to the complete cleanroom system rather than simply choosing a conventional sandwich panel with a similar thickness.

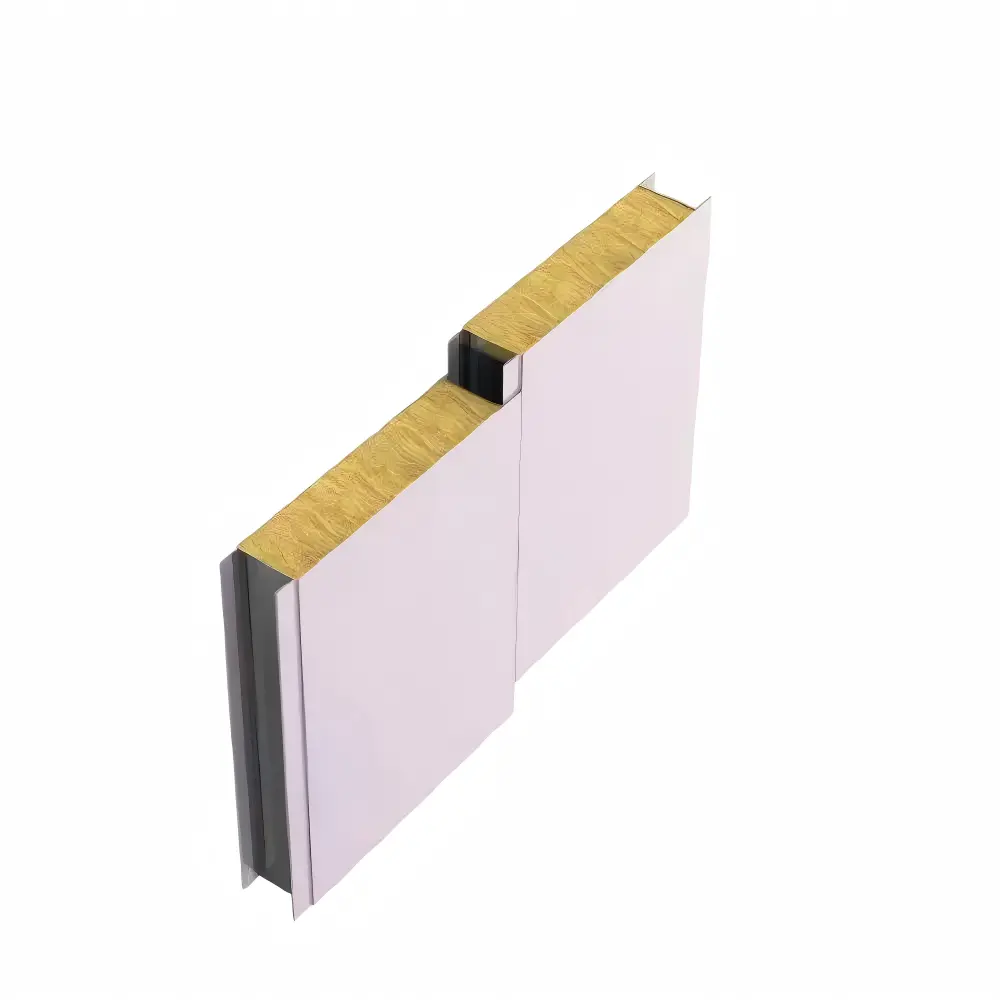

Common cleanroom wall panel cores include rock wool, MGO composite materials, aluminum honeycomb, paper honeycomb, polyurethane (PU) and polyisocyanurate (PIR).

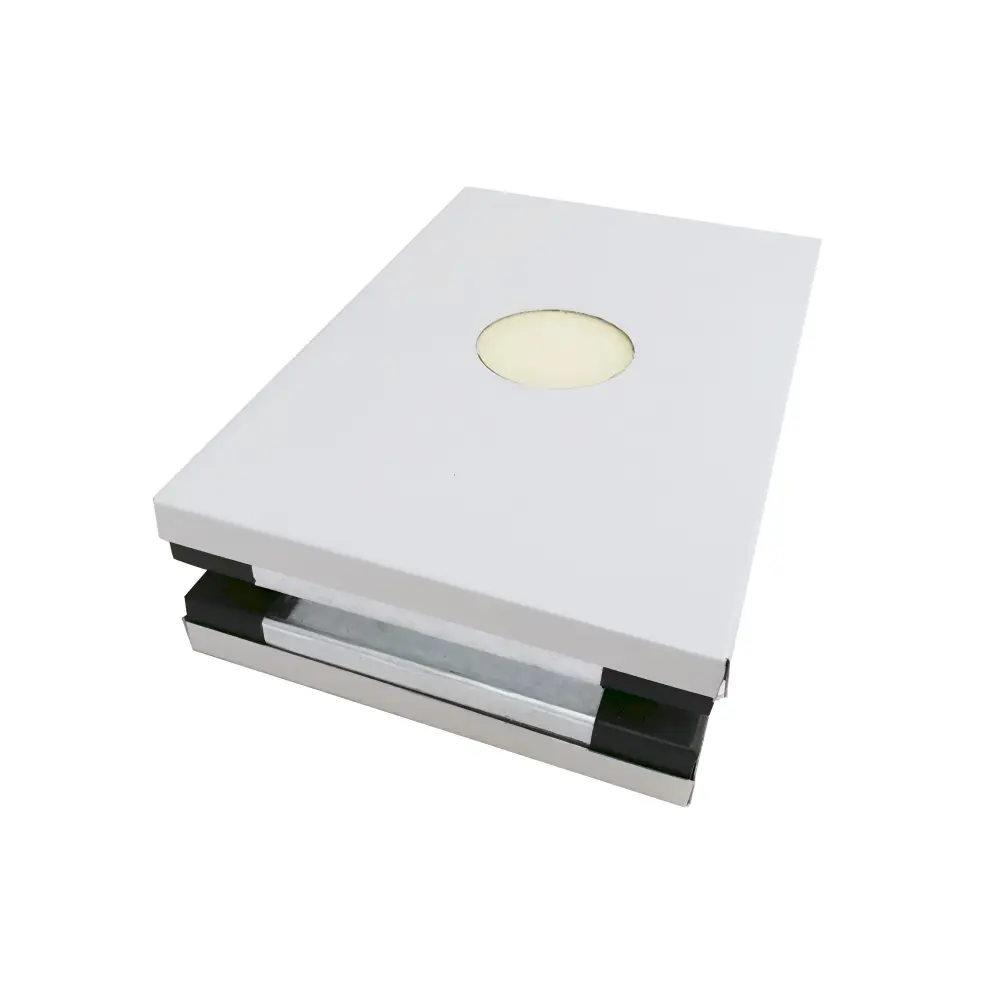

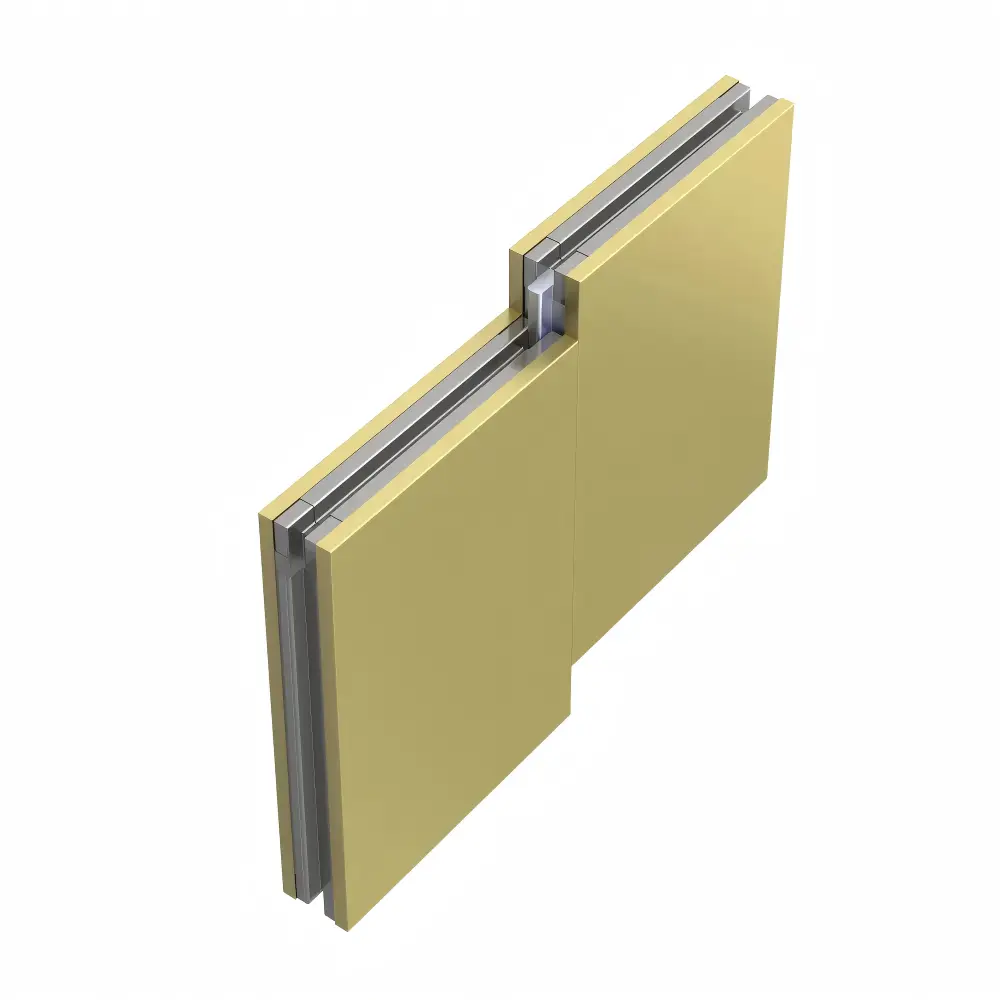

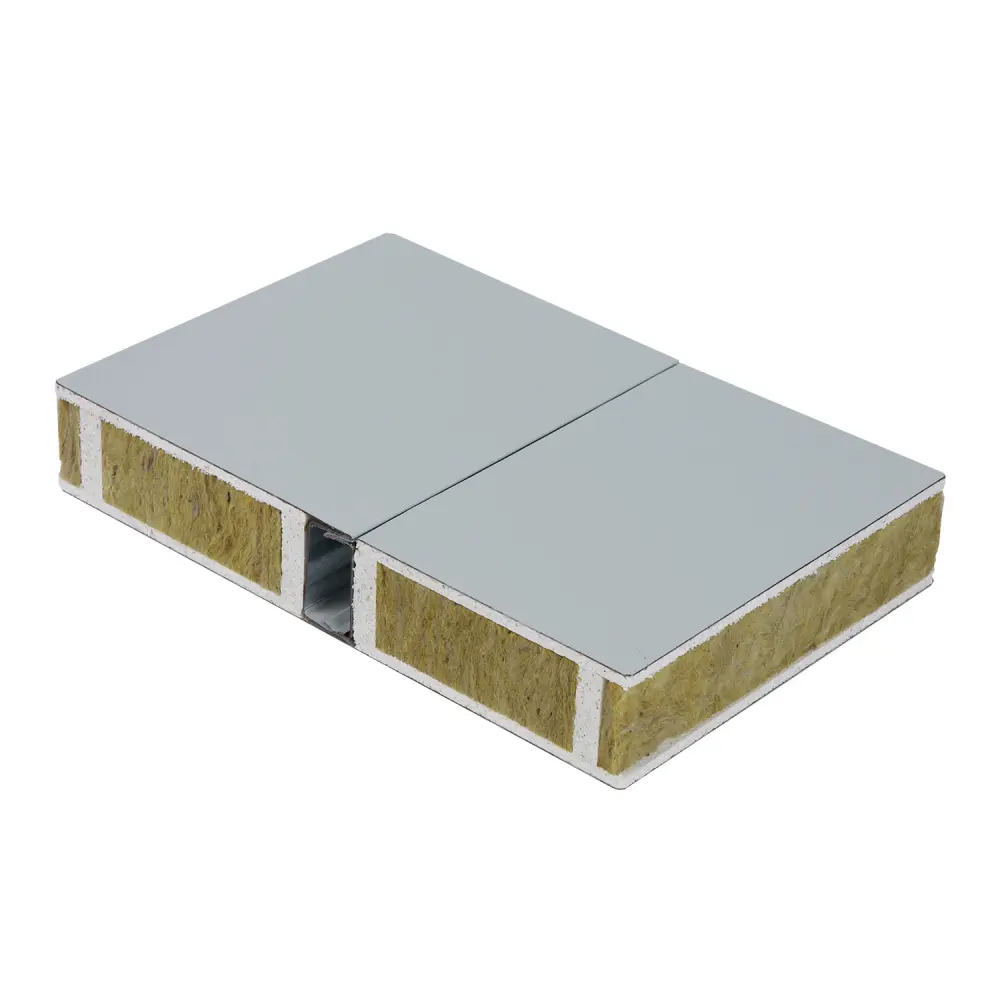

Rock wool is commonly considered when fire performance is important. PU and PIR provide high thermal insulation performance. Aluminum honeycomb offers a lightweight structure with good panel flatness, while MGO composite configurations can provide additional rigidity and fire-related performance.

Surface materials can include pre-painted galvanized steel, stainless steel and other project-specific metal facings.

The final material combination should be selected according to the cleanroom application, fire requirements, humidity, cleaning procedures, structural requirements and project specification.

There is no single core material that is best for every cleanroom project.

For projects where fire performance is a major priority, rock wool or appropriate MGO composite panels may be considered. For temperature-controlled environments where thermal insulation is important, PU or PIR panels may be suitable. Aluminum honeycomb can be considered when lightweight construction, rigidity and panel flatness are important.

Selection should consider the required fire performance, thermal insulation, wall height, cleaning environment, humidity, structural requirements, installation method and project budget.

If a project specification or drawing is available, the panel configuration should be reviewed against those requirements before final selection.

Common cleanroom wall panel thicknesses include 50 mm, 75 mm and 100 mm, although other thicknesses can be manufactured according to the selected panel system and project requirements.

Thickness should not be selected only according to price. The appropriate thickness depends on the panel core, wall height, structural requirements, thermal performance, fire requirements, openings and cleanroom design.

For project procurement, it is better to provide the wall height, panel type, application and drawings so that the panel configuration can be evaluated as a complete system.

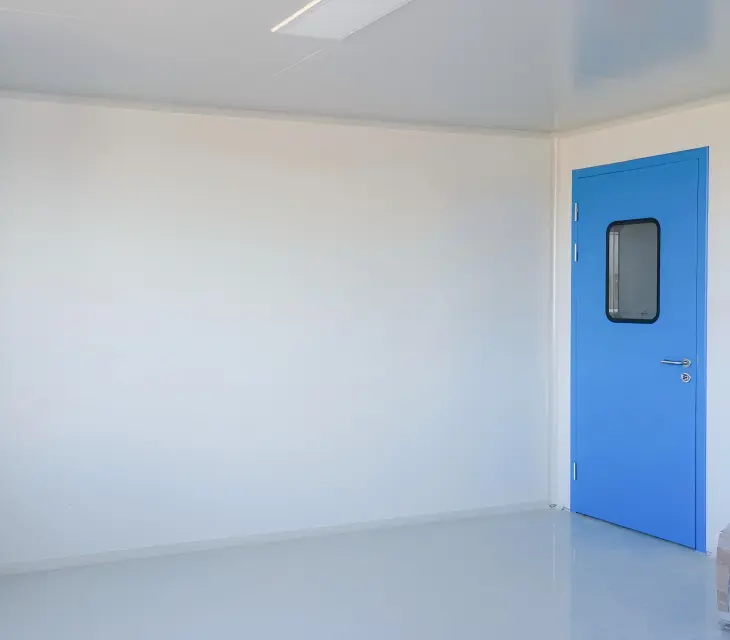

Yes. Modular cleanroom wall panels are widely used for pharmaceutical and biotechnology controlled environments because they can create smooth, cleanable wall surfaces and can be coordinated with cleanroom ceilings, doors, windows and service openings.

However, the wall panel itself does not determine whether an entire facility complies with GMP requirements. Compliance depends on the overall cleanroom design, HVAC system, pressure control, materials, construction, cleaning procedures, qualification and operation.

For pharmaceutical projects, panel surfaces, joints, corners, penetrations and interfaces should be selected according to the facility design and applicable project requirements.

Cleanroom wall panel systems can be used as part of cleanrooms designed for different ISO cleanliness classifications, including ISO Class 5, ISO Class 7 and ISO Class 8 environments.

However, an ISO classification applies to the performance of the complete cleanroom environment rather than to the wall panel alone.

Achieving the required cleanliness level depends on the complete system, including HVAC and HEPA filtration, airflow design, room pressure, sealing, doors, ceilings, penetrations, operating procedures and contamination control.

Wall panels contribute by providing smooth, cleanable and appropriately sealed enclosure surfaces.

Pre-painted steel is widely used for many cleanroom wall systems because it provides a smooth surface and can be supplied with different coating systems.

Stainless steel may be considered for areas requiring higher corrosion resistance or more demanding cleaning conditions.

Surface selection should consider the cleaning chemicals, disinfectants, humidity, corrosion exposure, hygiene requirements and project specification. Compatibility with the actual cleaning procedure should be confirmed before final material selection.

Cleanroom wall panels typically use modular connection systems designed to create aligned wall surfaces and controlled joints between adjacent panels.

The exact connection depends on the panel type and cleanroom system. Joint design should consider installation accuracy, sealing requirements, wall alignment, corners and interfaces with ceilings, doors and windows.

For customized projects, connection details should be coordinated with approved shop drawings before production.

Yes. Cleanroom wall panels can be manufactured or prepared according to project drawings for door openings, observation windows, pass boxes, equipment interfaces and other required penetrations.

For projects with multiple openings, providing approved drawings before production helps coordinate opening positions, dimensions and reinforcement requirements.

Prefabricating these details can reduce unnecessary cutting and modification during site installation.

Yes. Cleanroom wall panels can be customized according to project drawings, panel schedules, BOQs and technical specifications.

Customization can include panel dimensions, thickness, core material, facing material, coating, color, connection details, reinforcement, door and window openings, equipment openings and interface details.

For complex projects, drawings should be reviewed before production so that the wall system can be coordinated with ceilings, doors, windows and other cleanroom components.

For an accurate cleanroom wall panel quotation, it is helpful to provide:

Project country and destination

Cleanroom application or industry

Required wall area or panel quantity

Panel thickness

Preferred core material

Facing material and coating requirements

Wall height

Fire or thermal performance requirements

Door, window and equipment openings

Project drawings, BOQ or panel schedule

Required delivery schedule

If some specifications have not yet been determined, provide the cleanroom application and available drawings. The manufacturer can then discuss suitable panel configurations before preparing the final quotation.

Clean room wall panel prices vary according to the core material, panel thickness, metal facing, coating, dimensions, quantity, customization requirements, openings, accessories, packaging and destination.

For this reason, comparing cleanroom panels only by price per square meter may not provide an accurate comparison between different systems.

For project procurement, buyers should compare the complete specification, included components, customization, packaging, technical support and delivery terms.

A project-based quotation is usually more useful than a generic unit price.

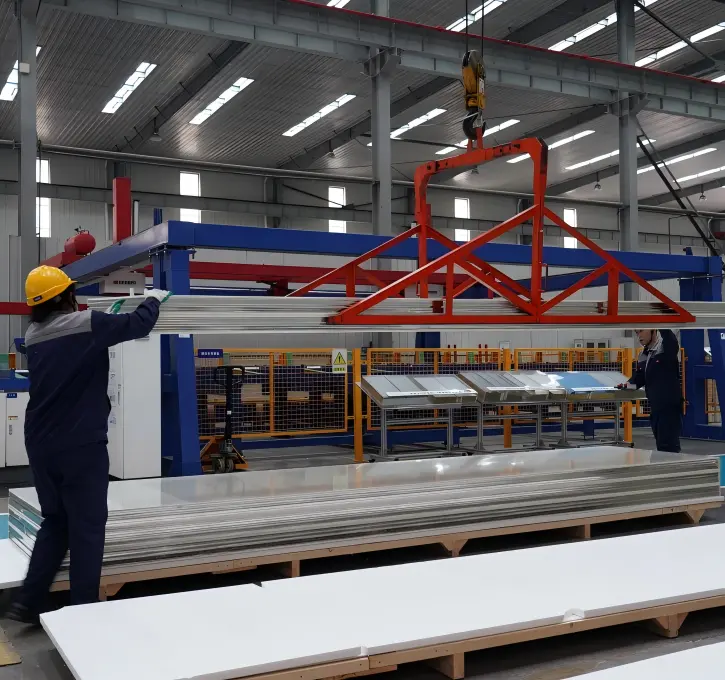

When evaluating a clean room wall panel manufacturer, consider manufacturing capability, available core and facing materials, customization capability, quality control, drawing support, production capacity, project experience, packaging and export capability.

For project-based procurement, the supplier should also be able to review drawings and technical specifications rather than simply provide a standard panel price.

Requesting product specifications, relevant test documentation, project references and manufacturing information can help procurement teams compare suppliers more effectively.

Yes. Depending on the project scope, Glostar can provide product drawings, installation details and technical guidance for cleanroom wall panel installation.

For international projects, clear panel identification, drawings and installation coordination can help contractors organize the installation sequence and reduce unnecessary modification on site.

The exact support scope should be confirmed according to the project and supplied cleanroom enclosure system.
